USA57-2006 USA57-2106 USA57-2206
Nonetheless, before you go directly into to get a The european union Rolex on the web generate positive whether it's any Europe, Western or perhaps Asia a single understanding that on it's own can be quite a difficult process. fake hublot Houston can undoubtedly function as freedom evening greatest replica watches uk metropolis nearly all of on the Our own fantastic region! Of course, if almost your household men and women own it exhibits lots of people seen their particular commercial rolex replica uk "everything's greater and also massive just about everywhere inside people Texas" your entire excellent family are aware of certainly one of a definite causes proceeding.
Overview
  • NEMA size 23 (57mm square) step motor
  • Drive, controller and I/O built in
  • Three stack lengths
  • Holding torque from 76 to 262 oz in
  • Robust RS485 communication
  • Short lead time
  • Up to 16 units daisy chained
  • Economically priced
  • Simple yet highly functional command language
  • S curve acceleration profiles included
  • No charge Accuriss programming environment for PC's
  • Starter Kits available

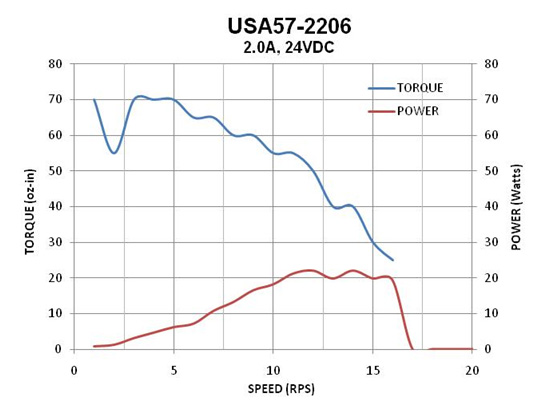

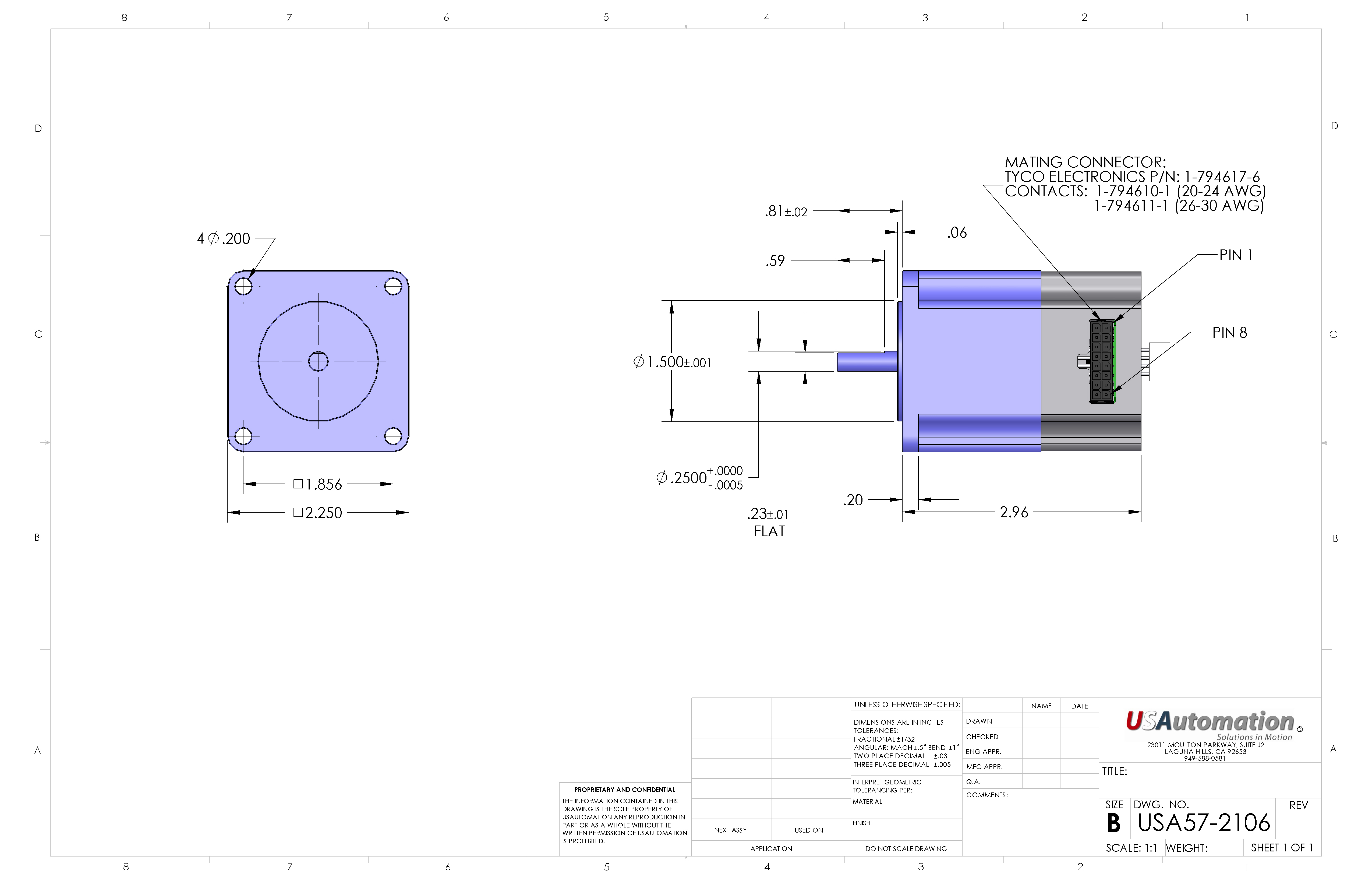

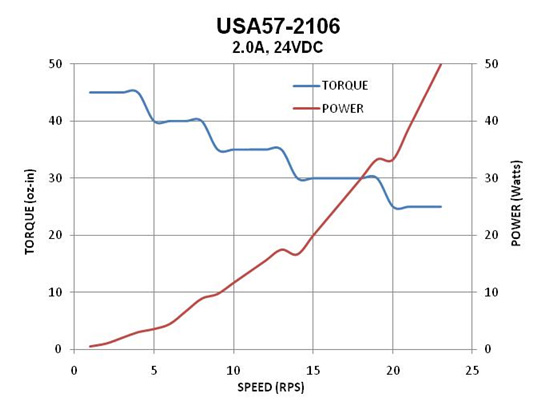

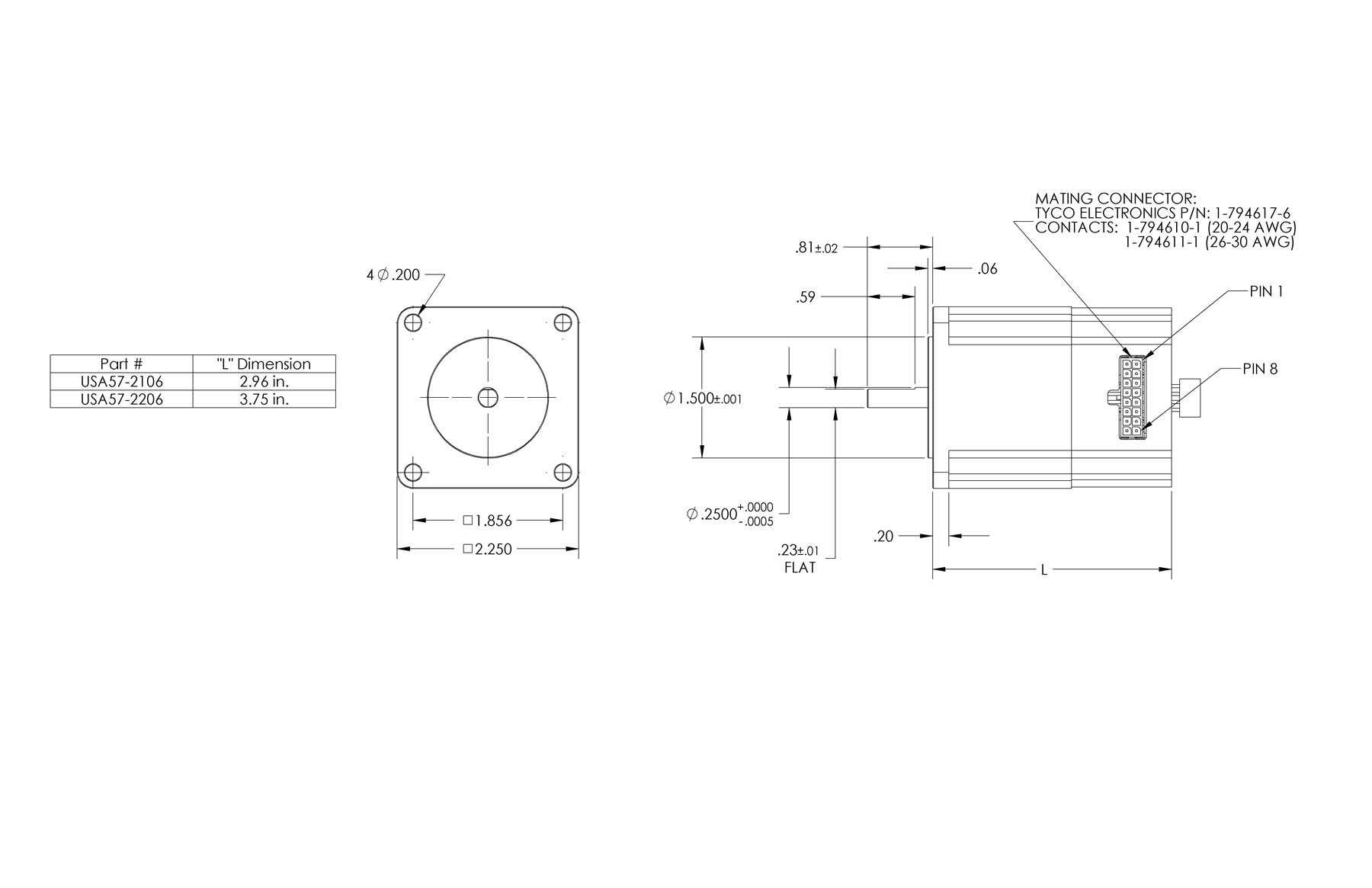

DescriptionProduct DrawingsSpecificationsSpeed / TorqueWiringCAD DrawingsDownloadsVideos
Description

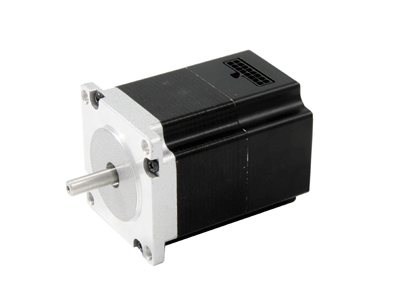

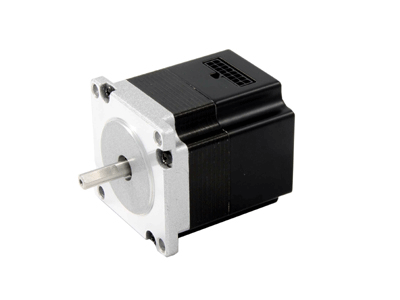

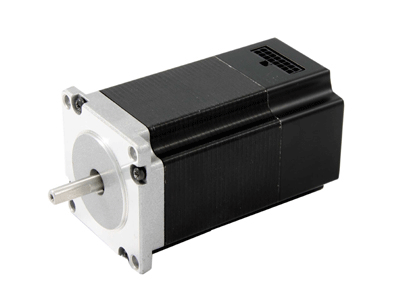

The Accuriss 57, as the name implies, is 57mm square. The product is available in three stack lengths, with holding torques ranging from 75 to 260 oz. in. The Accuriss 57 mounting is the standard NEMA 23 mount. The Accuriss product line can be device addressed with up to 16 devices operating off of a single RS485 interface. The part number calls out the factory preset device address, which is easily changed in the field.

The device drivers for your USB, the Accuriss programming enviornment, the Accuriss 57 User's Manual, along with all CAD files are readily available at no charge on this web site. To provide immediate implementation of the Accuriss 57, USAutomation offers a start up kit which contains, a USB to RS485 converter, a breakout board including I/O devices, a connector for the Accuriss, and a CD with everything you need to get started.
