Description

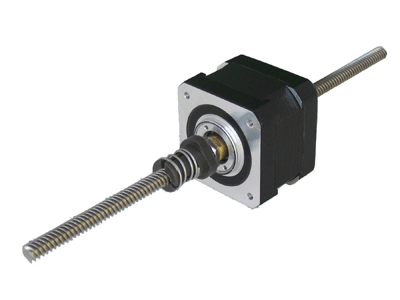

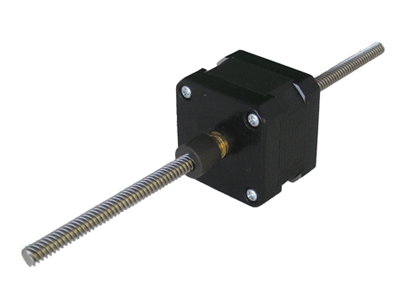

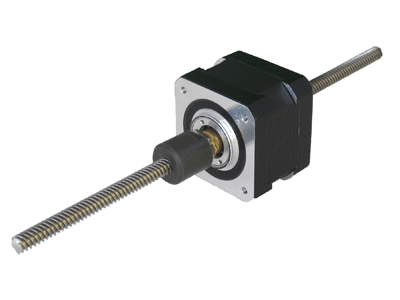

USAutomation's VersaDrive 17 leadscrew step motors were designed to be the most versatile linear positioning motors on the market. Based on a NEMA 17 hybrid step motor, they are available in thru-screw and fixed screw versions with a variety of drive nut and support bushing options. VersaDrive motors are robust and can be easily configured to solve some of the most difficult application problems. Integration of a leadscrew with a motor saves space, eliminates components, and reduces cost. While many standard configurations are available, custom modifications for OEM customers are welcome.

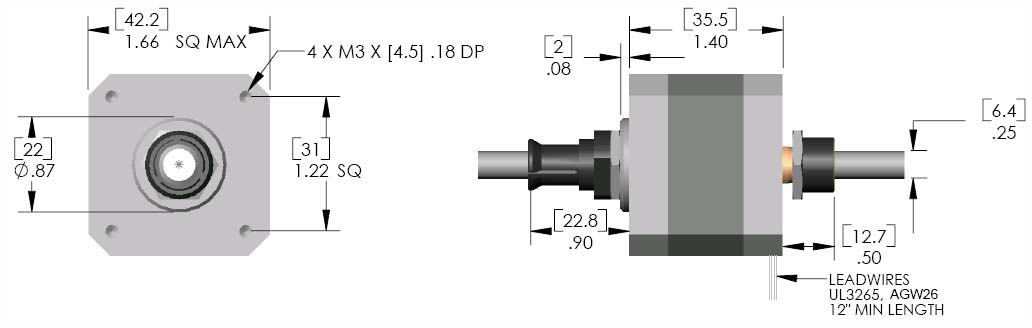

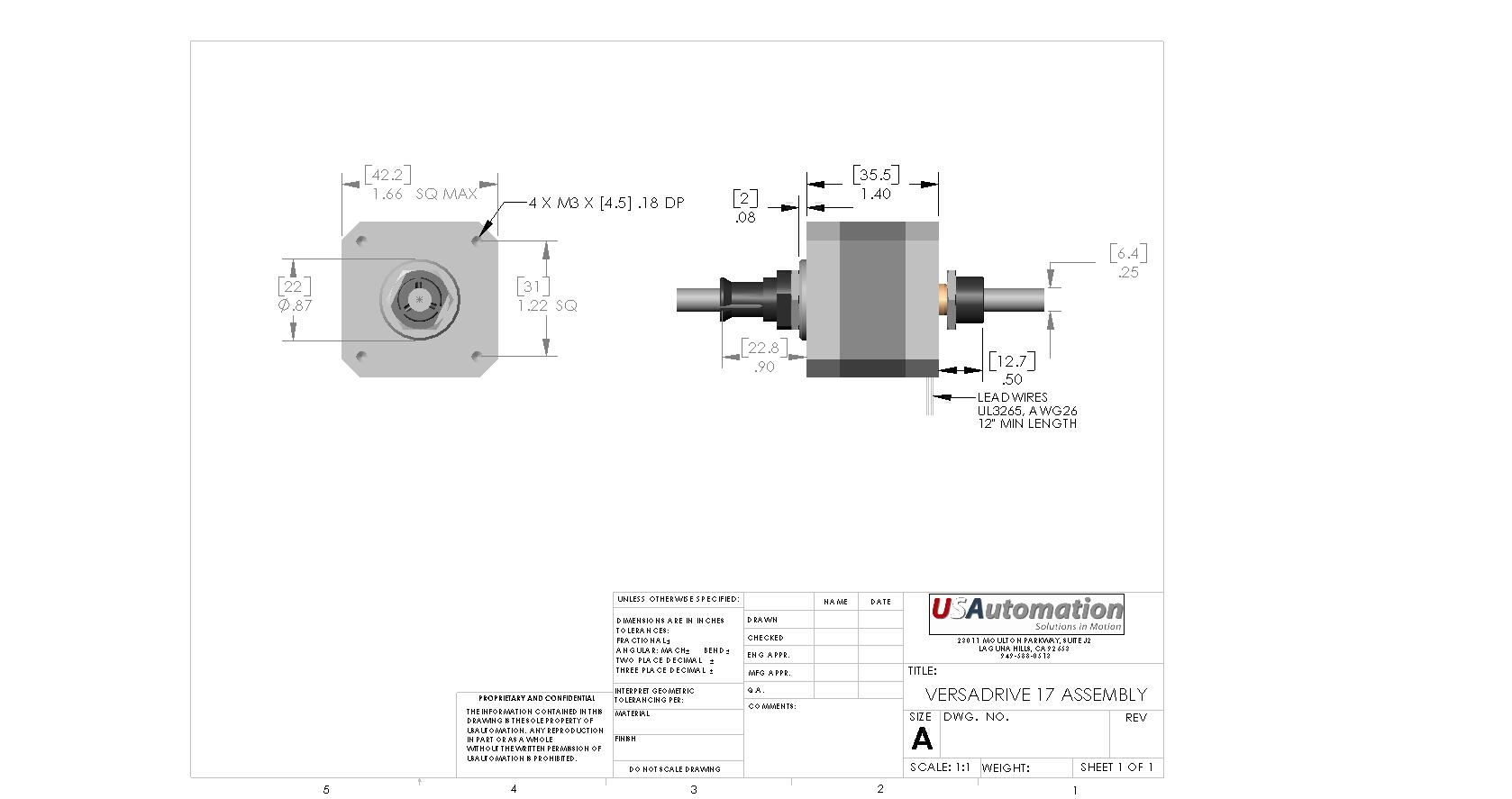

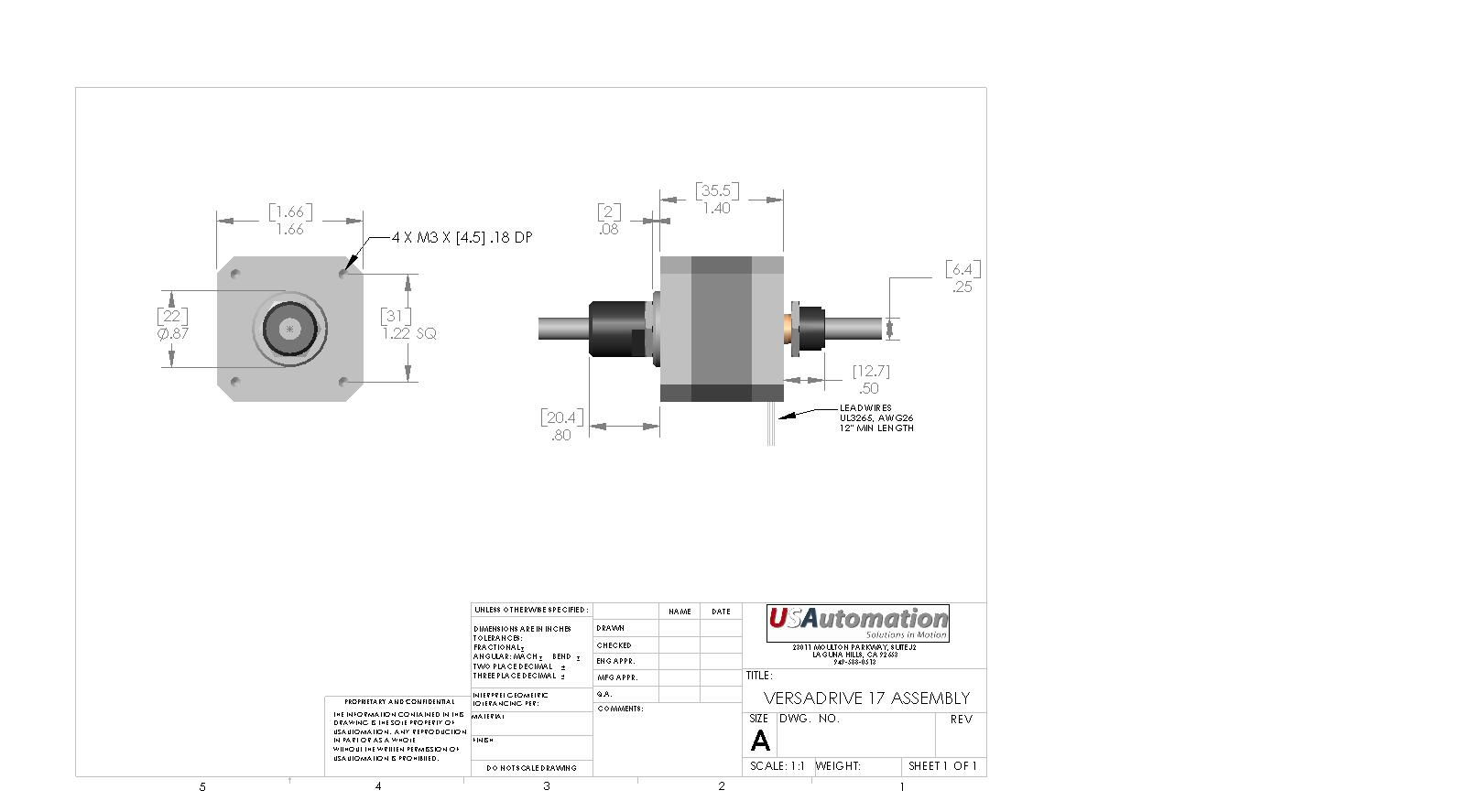

Product Drawings
Specifications
Motor Part Number |
Series Voltage (V) |
Series Current (A) |
Series Resistance (Ohms) |
Rated Power (W) |
Series Inductance (mH) |
Rotor Inertia (oz in sec2) |
Weight (oz) |
Length (in) |
USV17-105X |
6.8 |
0.5 |
13.6 |
3.4 |
16.8 |
4.96 x 10-4 |
8.0 |
1.30 |
USV17-110X |
3.6 |
1.0 |
3.6 |
3.6 |
4.5 |
4.96 x 10-4 |
8.0 |
1.30 |
USV17-115X |
2.5 |
1.5 |
1.7 |
3.8 |
2.1 |
4.96 x 10-4 |
8.0 |
1.30 |

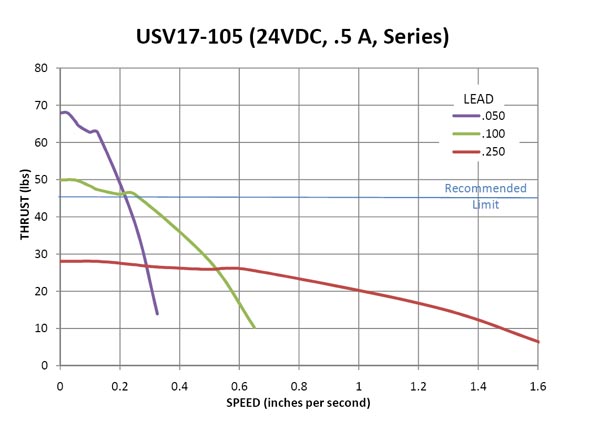

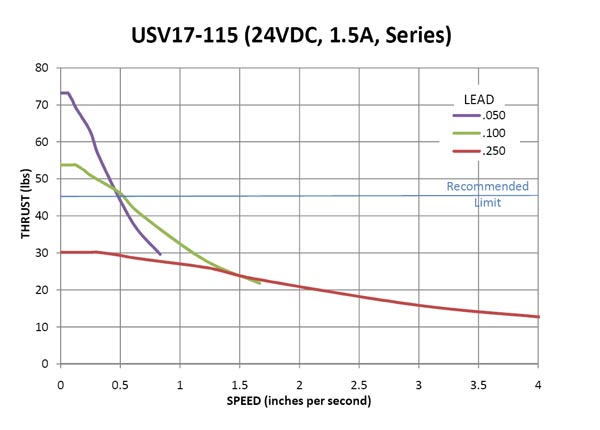

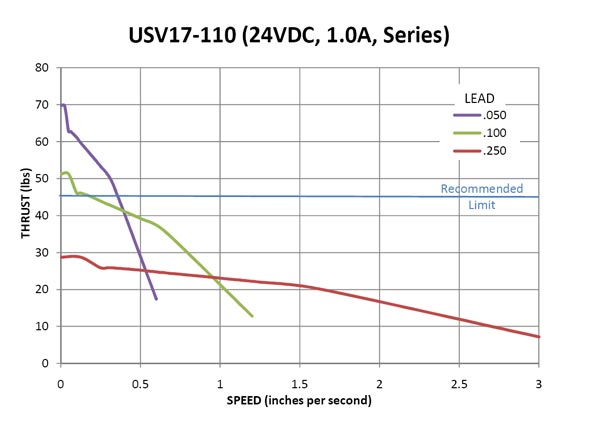

Linear Travel Options
Motor Part Number |
Screw Lead in(mm) |
Static Force lb(N) |
Dynamic Force lb(N) |
Travel per Full Step in(µM) |
Travel per Microstep in(µM) |
Positioning Accuracy in/in(mm/mm) |
USV17-1XXXX05XX |
.050 (1.27) |
82 (365) |
70 (311) |
.00025 (0.98) |
.98 x 10-6 (.0038) |
.0004 (.0004) |
USV17-1XXXX10XX |
.100 (2.54) |
82 (365) |
50 (222) |
.00050 (1.97) |
1.95 x 10-6 (.0077) |
.0004 (.0004) |
USV17-1XXXX25XX |
.250 (6.35) |
82 (365) |
28 (125) |
.00125 (4.92) |
4.88 x 10-6 (.0192) |
.0004 (.0004) |
